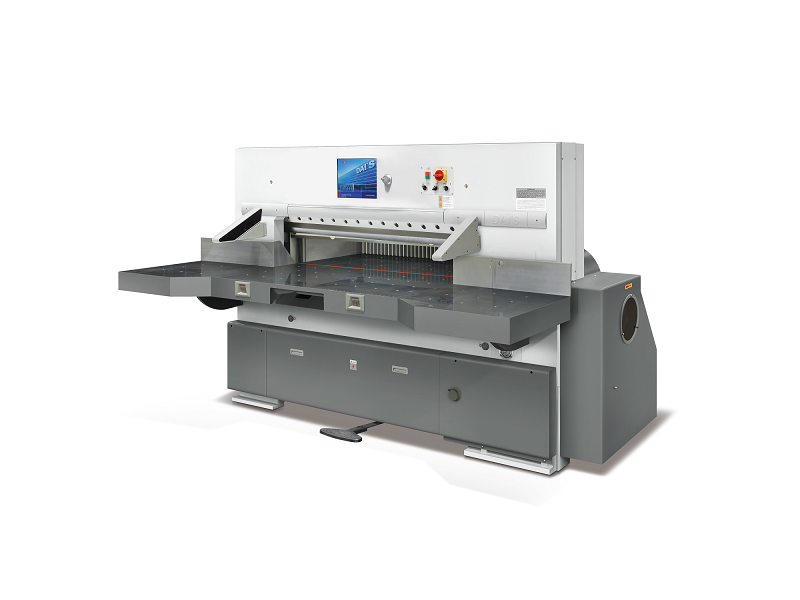

Programmed 15"
High cutting accuracy up to the last sheet at high speed
Wide operating possibilities with flexible program
Processing various materials, as e.g. paper, cardboard, offset printing plates or similar cutting stock
Introduction
High cutting accuracy up to the last sheet at high speed
Wide operating possibilities with flexible program
Processing various materials, as e.g. paper, cardboard, offset printing plates or similar cutting stock
Technical Parameters
| Model | 1150 | 1300 | 1370 | 1640 | 1860 | 2000 | 2200 | 2600 | 4000 |
| The Code Of Way Of Transmission | M | M | M | M | M | M | M | A | A |
| Cutting Width (mm) | 1150 | 1300 | 1370 | 1640 | 1860 | 2000 | 2200 | 2600 | 4000 |
| Cutting Length (mm) | 1150 | 1300 | 1370 | 1640 | 1860 | 2000 | 2200 | 2600 | 2600 |
| Cutting Height (mm) | 160 | 130 | 160 | 160 | 160 | 160 | 160 | 120 | 120 |
| Front Table Length (mm) | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Front Table Height (mm) | 930 | 930 | 930 | 930 | 930 | 930 | 930 | 930 | 930 |
| Power Consumption Of Main Motor (kW) | 5.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 |
| Max. Clamping Pressure (dan) | 5000 | 5000 | 5000 | 5500 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Cutting Speed (times/min) | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 32 | 32 |
| Net Weight (kg) | 3800 | 3500 | 4500 | 6500 | 7500 | 9600 | 10600 | 12000 | 15000 |
| Gross Weight (kg) | 4000 | 3700 | 4700 | 6700 | 7700 | 9900 | 10900 | 12300 | 15300 |
| Overall Dimension L × W × H (m) | 2.5×2.7×1.6 | 2.7×2.9×1.6 | 2.8×3.2×1.7 | 3×3.2×1.7 | 3.4×3.2×1.6 | 3.6×3.2×1.6 | 3.6×3.4×1.6 | 4×3.4×1.6 | 5×3.4×1.6 |
| Packing Size L × W × H (m) | 2.65×1.62×1.9 | 2.85×1.42×1.9 | 2.85×1.62×2 | 3.15×1.4×2 | 3.65×1.7×2.59 | 3.65×1.7×2.59 | 3.65×1.7×2.59 | 4.6×1.7×7 | 4.8×1.7×3 |
